API Reference

API Keys

API keys authenticate requests to recognition endpoints (enroll, verify, identify, liveness). Each key is scoped to a single collection, draws on your organization's rate limit, and can optionally restrict access to a list of IP addresses or CIDR ranges.

Keys are stored as SHA-256 hashes. The plaintext key is only returned once at creation. If lost, the key must be regenerated.

Creating an API key

API keys are created from the dashboard under API Keys → Create Key. Key management endpoints are CORS-restricted to the dashboard and are not accessible from external applications.

When creating a key you select the target collection, set an optional rate limit override, and optionally restrict access to specific IP addresses. The full key value is shown once only. Copy it immediately and store it securely in your environment or secrets manager.

Key format

All API keys follow the format lxf_<8 hex chars>_<24 chars>. The leading lxf_<8 hex chars> is the key prefix, which is stored and shown in the console so you can identify a key without revealing it. There is no separate test key format — use a dedicated organization for testing instead.

Request parameters

Parameter	Type	Required	Description
name	string	Yes	Human-readable label for this key.
scopes	string[]	No	face:read, face:write, or both. Empty grants both.
allowedIps	string[]	No	IP addresses or CIDR ranges. Empty allows any IP.
customRateLimitRpm	integer	No	A lower per-minute limit for this key alone, from 1 up to your plan's rate. The key still draws on the organization's budget. Leave it out to use the plan rate.
expiresAt	string	No	RFC 3339 timestamp after which the key stops working.
isSandbox	boolean	No	Sandbox keys are metered separately and cannot touch live collections.

Managing keys in the dashboard

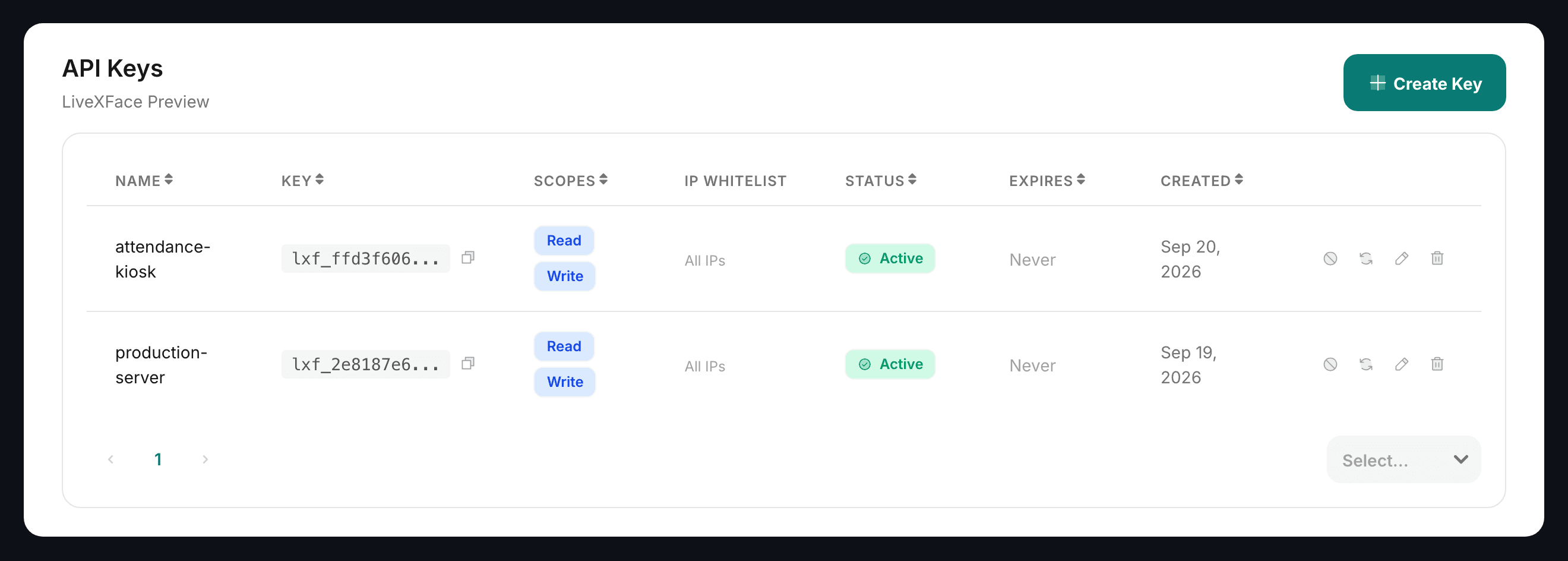

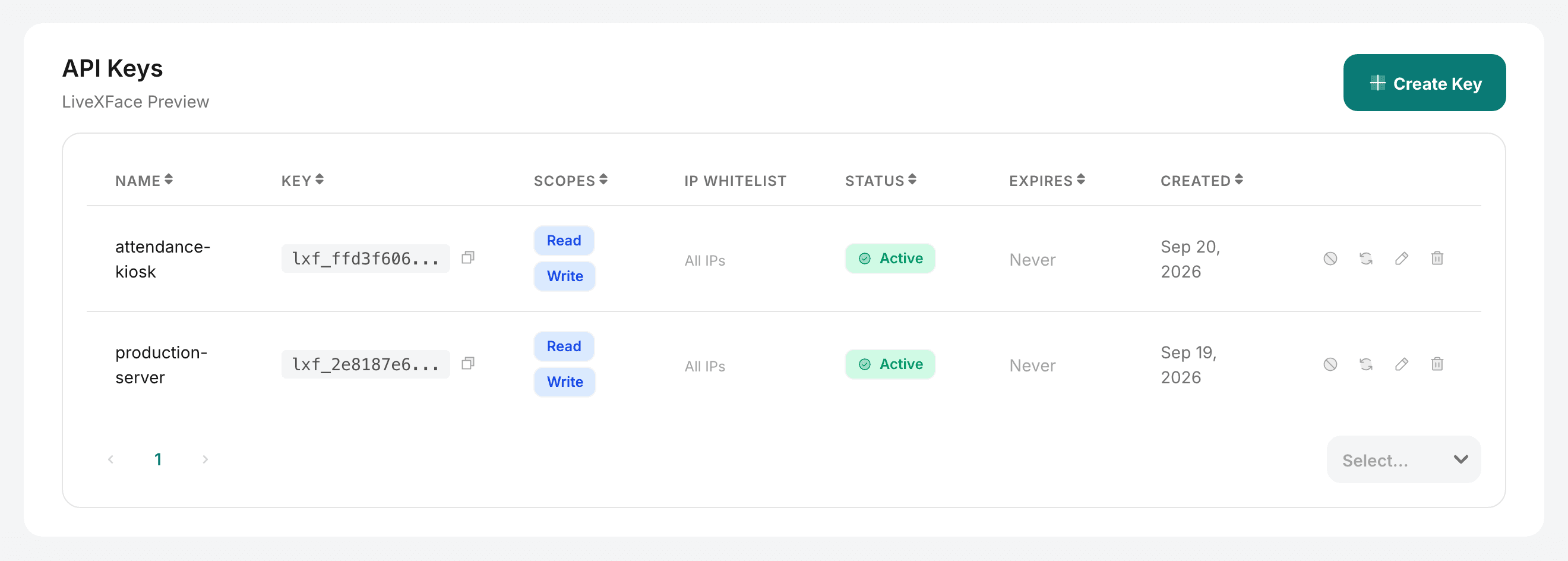

The API Keys page in the LiveXFace console. A table lists two keys with their name, truncated key prefix, read and write scopes, IP whitelist, active status, expiry and creation date. A Create Key button sits at the top right. — The key column shows only the prefix. It identifies a key in the list; it cannot be used to call the API.

List: The API Keys page shows all keys with their name, collection, last-used timestamp, and a masked key prefix for identification.
Update: Edit a key to change its name, rate limit, or IP whitelist.
Revoke / delete: Immediately invalidates the key. Any in-flight requests using the key will fail withINVALID_API_KEY.
Regenerate: Issues a new key value while keeping the same settings. The old value is invalidated.

Key limits by plan

Plan	Keys per member	Requests per minute
Free	1	20
Starter	2	30
Pro	5	100
Enterprise	20	300

The rate belongs to the organization: all its keys share it, so a second key does not bring a second budget. Sandbox keys are held to 10 requests a minute each. The dashboard's own recognition features (the playground, enrolling from the dashboard) count in a separate budget at the same rate, so testing there never slows your production traffic.

IP whitelisting examples

JSON

// Allow a single IP
"allowedIps": ["198.51.100.42"]

// Allow a subnet (CIDR notation)
"allowedIps": ["10.0.0.0/8"]

// Multiple entries
"allowedIps": ["203.0.113.0/24", "198.51.100.0/24", "192.0.2.5"]

// Allow all IPs (default)
"allowedIps": []
